The finishing line
Precast Concrete & Cast Stone Wall Caps
Precast wall caps that protect masonry walls, finish planters, and complete landscape architecture.
Browse the designs
57 catalogue references
1 / 3
View in 3D ↓Building the 3D material study…
Live WebGL geometryWC61-25 · Catalogue-traced wall cap sectionWC61-25
Back to the designs ↑Drag to orbit · use Front, Isometric or Section to reset the viewIllustrated module length · inches (view only)24 inches · one straight modulePrinted along-wall length in the illustration, not a current stock promise. Section view zooms in on the cut profile. Viewing selections are not an ordered size.
Digital smooth-color studyAlpine White · Smooth
This is the selected reference’s original cut section, extruded as one visual module, not a generic slab or a complete installed stair/pool/wall assembly. Adjustable back widths, riser drops and unlabelled details are provisional; source conflicts are identified below. Confirm dimensions, drainage, slip resistance, joints, reinforcement, fixing and physical samples for the project. See all four precast finishes and 19 colors.
Selected reference
WC61-25WC 61 series
Catalogue-based visual study · not fabrication CAD.
Dimensions, drawing & model notes
- Catalogue section reference
- WC61-25 · wall cap · WC1 / PDF page 6
- Section height · inches
- 2.5 H · Published table Height.
- Maximum section projection · drawing-derived inches
- ≈ 14.773 · includes the moulded overhang; not necessarily the lower bearing width
- Illustrative adjustable bearing width · inches
- 12 · table says Adjustable; this viewing width is not a fixed stock size
- Reconstruction notes
- The original grey end section, its published table row and its own along-wall length define this visual model. Base Width / A is the lower bearing width, not necessarily the widest moulded overhang. Unlabelled fillets, slopes, rebates and small transitions are drawing-derived; this is not fabrication CAD, a drainage/slope specification, structural approval or a stock-availability promise. The table marks base width Adjustable. The viewing width is 12 inches as an illustrative assumption, not a printed stock width.
Official catalogue drawing · PDF page 6 · Open full dimensions ↗Historic sheet: use current website contact details. Confirm final dimensions and availability with Landmark Stone.- Suitable conversations
- Landscape walls · Seat walls · Retaining walls
- Coordinate before release
- Final dimensions, returns, attachment, tolerances, color, and texture.
Project shortlist · 0/3 selected
Save up to three catalogue references to discuss with Landmark Stone.
Catalogue notes & complete model index
Catalogue-traced coping, tread and wall-cap sectionsWall Caps
57 catalogue / source references · 15 families · four digital color studies
57 individual wall-cap references · original catalogue sections
Preparing interactive controls. The original catalogue links remain available.
Explore every sized WC / WR row, including the original WR64 prefix. Printed 10-, 24- and 25-inch runs are retained. WC66/WC68 Height and X values conflict; WC75-35 has different table and illustration heights. These discrepancies are shown with the affected model.
Adjustable widths use explicit viewing assumptions. Bearing width is shown separately from the moulded maximum projection. Unlabelled slopes, fillets, joints and returns remain drawing-derived. These are visual studies, not fabrication CAD, drainage specifications, stair-code or structural approvals.
1 / 57
Landscape precastProtects wall construction · Straight and curved conditions · Custom dimensionsCustom profiles welcome
About this catalogue and its source references
Interactive catalogue
Find a reference. Check the official profile.
Explore all 57 sized WC / WR wall-cap references with their own catalogue outlines, bearing widths and printed runs. Review maximum overhangs, roof profiles and explicitly flagged Height/X discrepancies before specifying.
Material programLandscape precast
ApplicationsLandscape walls · Seat walls
Catalogue / source references shown57 entries
Project optionsSize · finish · returns
Landscape
Precast Concrete & Cast Stone Wall Caps: profiles, applications and planning.
Explore all 57 sized WC / WR wall-cap references, each with its original profile and dimensional row. Compare moulded overhangs, lower bearing widths and roof forms; printed lengths and catalogue dimension conflicts are identified with each model. Curves, corners and installation details require separate project review.
Coordinated stair treads, pool coping, pier caps, and pavers allow the entire landscape to share one material language.
Landmark Stone is based in Olivehurst, California. Share your project location and drawings for a product review, including projects in Sacramento and across Northern California.
Review precast colors and finishes · Request a precast color and finish sample
Why it works
- Protects wall construction
- Straight and curved conditions
- Custom dimensions
- Coordinated coping and pier caps
- Weather-resistant material
- Multiple textures and colors
Applications
Wall Caps: typical applications.
A starting point for design conversations. Project conditions, engineering, attachment, and local requirements should be reviewed for the final assembly.
01Landscape walls
02Seat walls
03Retaining walls
04Boundary walls
05Raised planters
06Courtyard walls

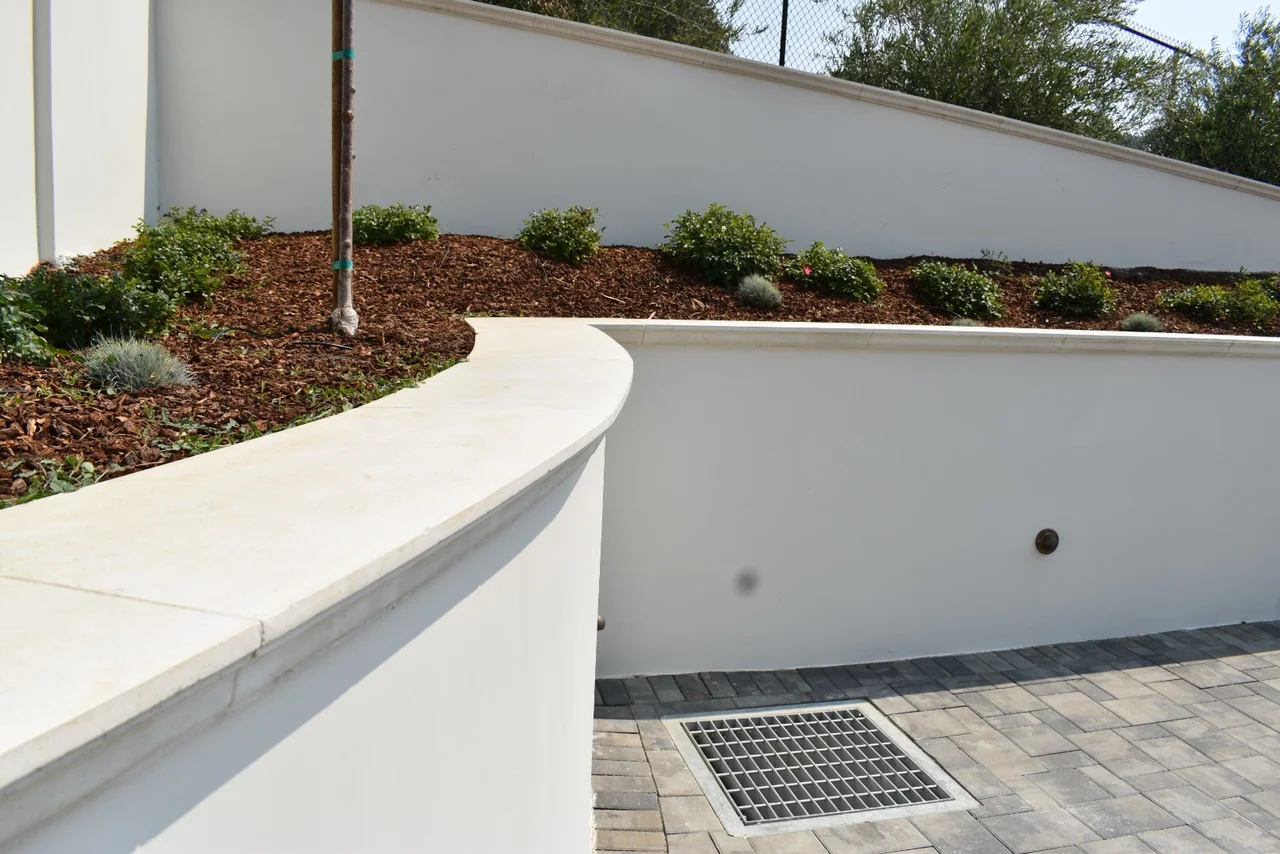

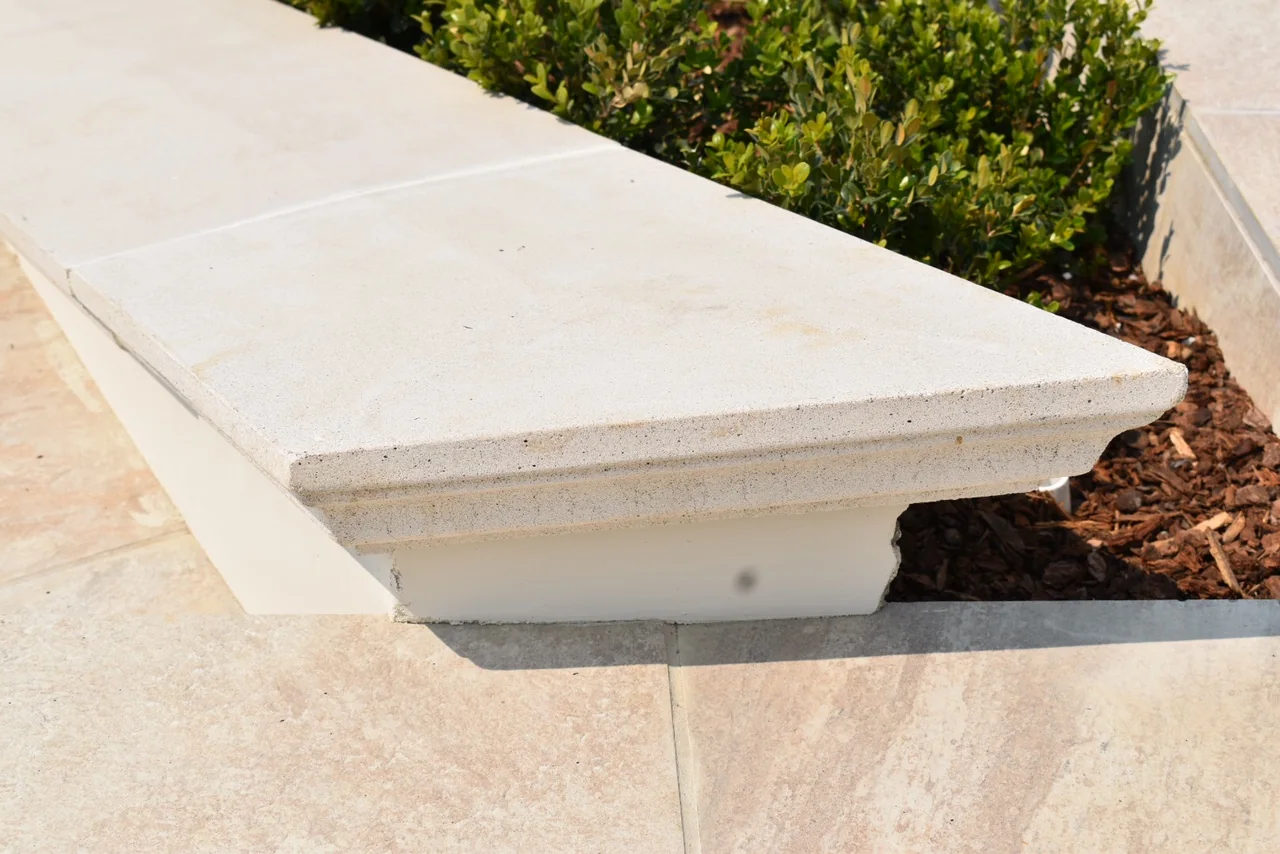

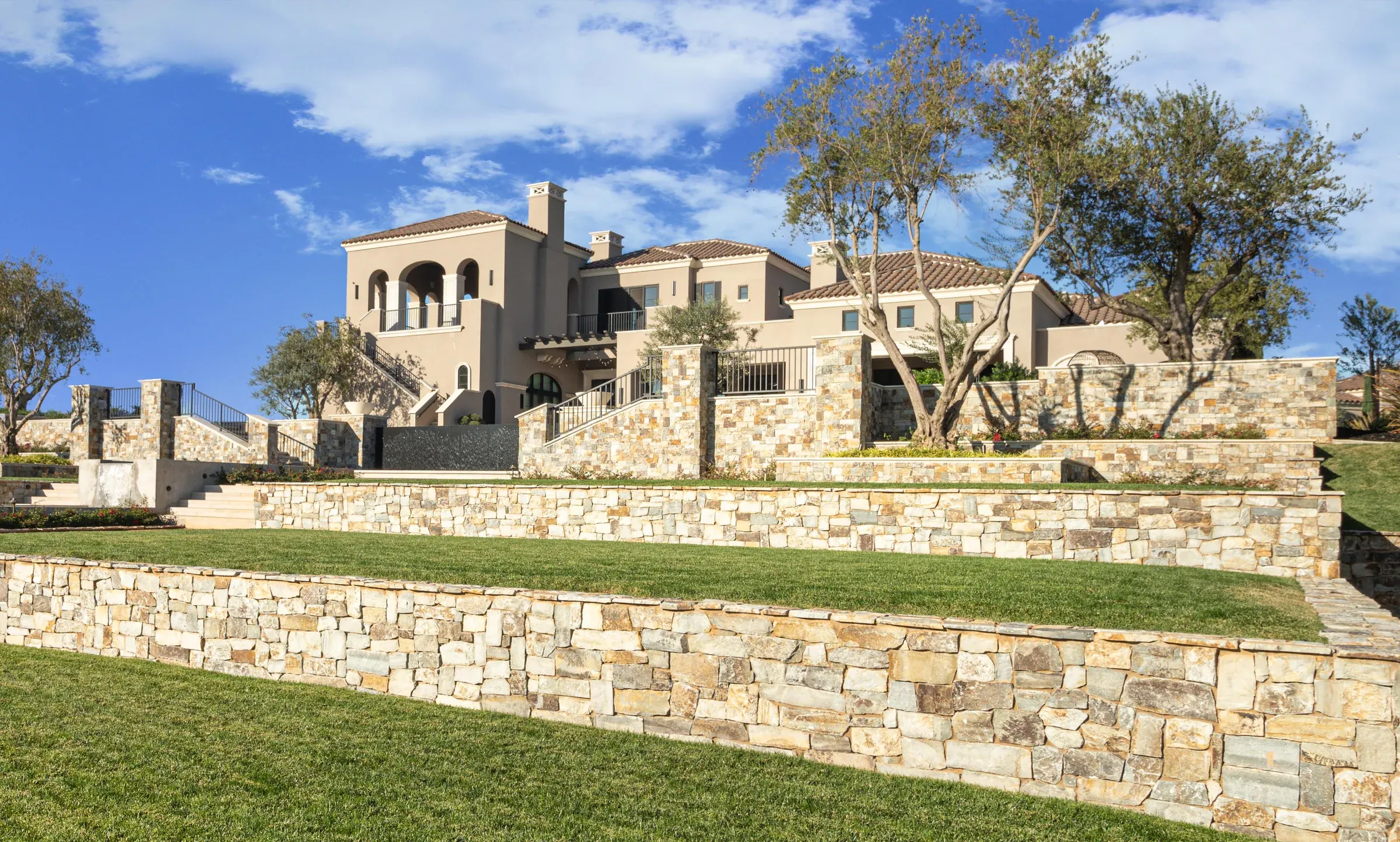

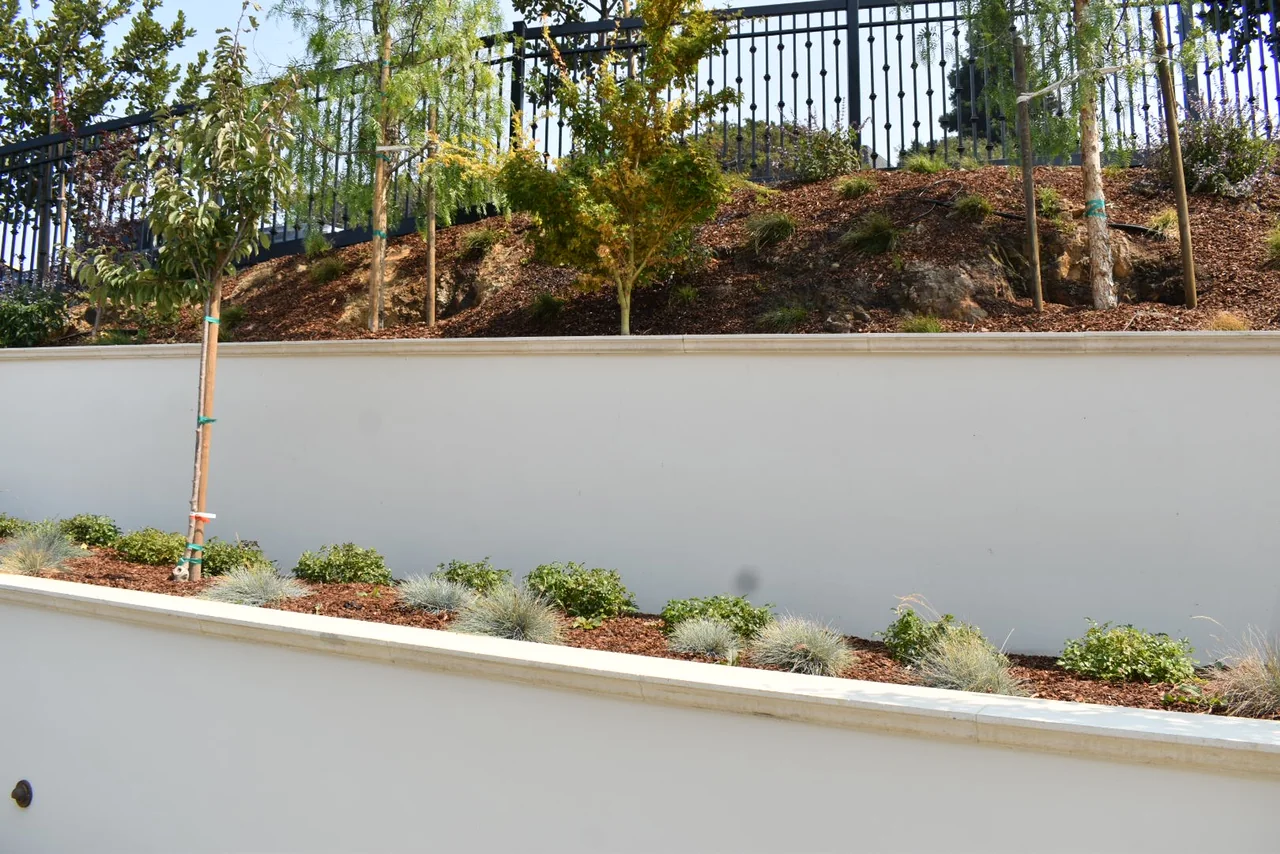

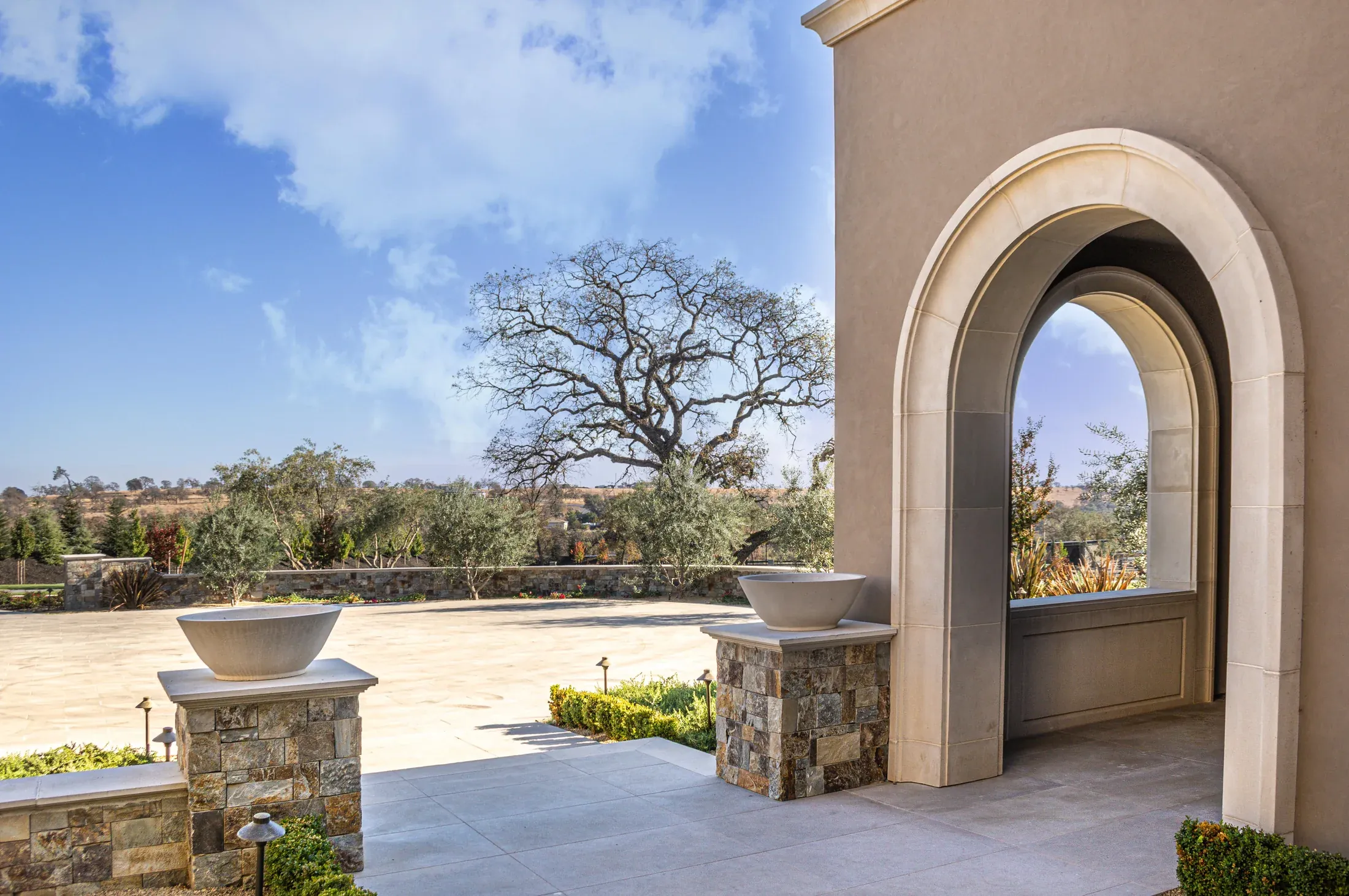

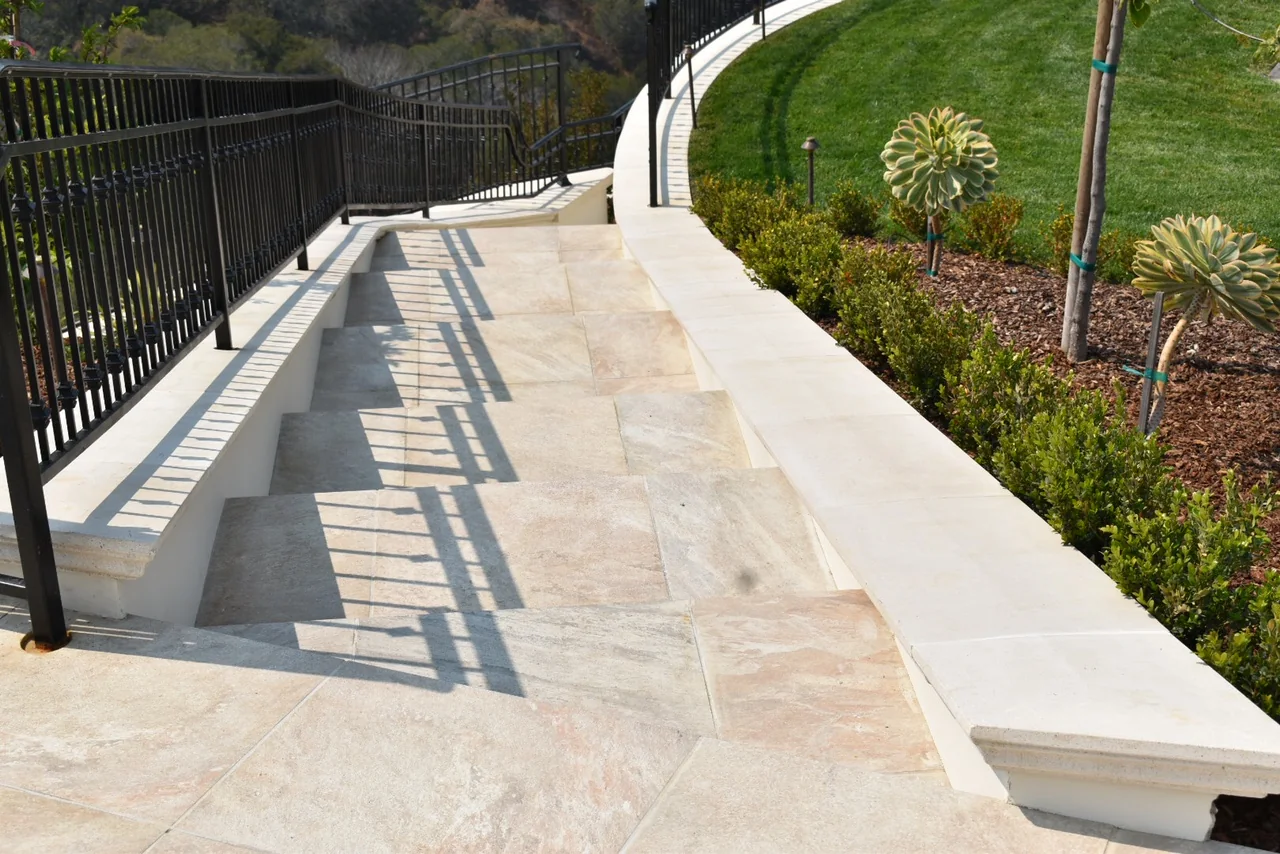

6 product images
A closer look at Wall Caps.
Explore product details and relevant project views. Catalogue drawings and alternative systems are identified in the captions. Select any image to see the complete view at a larger size.
From reference to release
What Landmark Stone needs to resolve the piece.
A catalogue code is a useful starting point, not the whole specification. Send the available project information and the team can help close the gaps before fabrication.
Start a Wall Caps review- 01Drawings & dimensions
Plans, elevations, sections, field measurements, or a marked-up sketch.
- 02Reference & design intent
A catalogue model, inspiration image, or profile that establishes the desired character.
- 03Quantity & configuration
Piece counts, linear footage, corners, radii, returns, openings, and repeated conditions.
- 04Color & surface
Target color, texture, adjacent materials, and the light conditions used for sample approval.
- 05Interface & schedule
Substrate, attachment assumptions, delivery sequence, site access, and required milestone dates.
Common planning questions
Useful answers before you request pricing.
What should be measured before selecting wall caps?
Record the finished wall width, overall runs, corners, ends and desired overhang. Include wall finishes and any changes in level so the cap layout and joint locations can be coordinated.
Can catalogue references be customized?
Yes. Catalogue families establish proportion and design direction. Final size, length, returns, radius conditions, color, texture, and project interfaces can be reviewed for the selected application.
What should be included with a quote request?
Send the model or design reference, dimensioned drawings when available, quantities, project location, desired finish, and schedule. Early sketches are also welcome when details are still being developed.
How are color and texture approved?
Digital finish studies help narrow the direction, but physical samples should be reviewed beside adjacent materials and in the project’s actual light before final approval.
Are attachment and installation requirements included?
The final assembly depends on piece geometry, substrate, loading, access, and local requirements. These conditions should be coordinated with the project team before release.
Technical review
Planning information in one place.
Open the product catalogue for profile drawings and dimensional references. Confirm final dimensions, tolerances, engineering, finish samples, and installation requirements with the Landmark Stone team.
