Architectural
Mouldings & Surrounds
Precisely cast surround, band, and trim profiles that frame openings and organize façades.
Corner rhythm and wall depth
Cast Stone Quoins & Architectural Wall Panels
Cast quoins and panel modules that articulate corners, wall fields, openings, and traditional façade compositions.
Browse the designs
32 catalogue references
1 / 4
View in 3D ↓Building the 3D material study…
Live WebGL geometryQ1-2412 · Catalogue-based reconstructionQ1-2412
Back to the designs ↑Drag to orbit · use Front, Isometric or Side to reset the viewDigital smooth-color studyAlpine White · Smooth
This is Q1-2412’s catalogue-based visual reconstruction, not a generic corner or panel. Q10 is undimensioned; other references retain their published overall sizes. Undimensioned relief, bevels, rustication and rebate details are identified as estimates below. This is not fabrication CAD or an approved installation detail. Confirm returns, joints, fixing and physical samples before ordering. See all four precast finishes and 19 colors.
Selected reference
Q1-2412Q1 · Plain returns
Catalogue-based visual study · not fabrication CAD.
Dimensions, drawing & model notes
- Catalogue treatment
- Plain L-return
- Side A / Side B · inches
- 24 A × 12 B · actual L-return legs, not a solid block
- Height / nominal thickness · inches
- 12 H × 2 T · published table row
- Source
- Section QN1 · PDF page 1 · original illustration, dimension table or panel section
- Reconstruction notes
- Side A, Side B, height and nominal thickness are the published table dimensions. The single illustrated L-return is resized to this individual table row; equal-leg variants retain the same treatment. Digital visual reconstruction, not fabrication CAD. Confirm dimensions, joints, returns, fixing and physical color/finish samples before specification.
Official catalogue drawing · PDF page 1 · Open full dimensions ↗Historic sheet: use current website contact details. Confirm final dimensions and availability with Landmark Stone.- Suitable conversations
- Building corners · Entry surrounds · Wall fields
- Coordinate before release
- Final dimensions, returns, attachment, tolerances, color, and texture.
Project shortlist · 0/3 selected
Save up to three catalogue references to discuss with Landmark Stone.
Catalogue notes & complete model index
Catalogue-based quoins and wall panelsQuoins & Wall Panels
32 catalogue / source references · 8 families · four digital color studies
32 individual Q / PN references · 4 original catalogue sheets
Preparing interactive controls. The original catalogue links remain available.
Compare all 24 sized L-return quoins, the five-flute Q10 reference and seven wall panels. Table dimensions and published panel sizes are retained; bevels, relief and rebates without dimension labels are drawing-derived estimates. Q10 has no published dimensions and is shown in normalized proportions only, not at a claimed stock size.
1 / 32
Architectural precastSix quoin families · Multiple heights and thicknesses · Coordinated wall panelsCustom profiles welcome
About this catalogue and its source references
Interactive catalogue
Find a reference. Check the official profile.
Explore 24 sized quoins, the undimensioned Q10 fluted reference and seven wall panels as individual catalogue-based 3D models. Inspect corner returns, bevels, recessed faces and bottom rebates alongside the original drawings, then shortlist up to three references.
Material programArchitectural precast
ApplicationsBuilding corners · Entry surrounds
Catalogue / source references shown32 entries
Project optionsSize · finish · returns
Architectural
Cast Stone Quoins & Architectural Wall Panels: profiles, applications and planning.

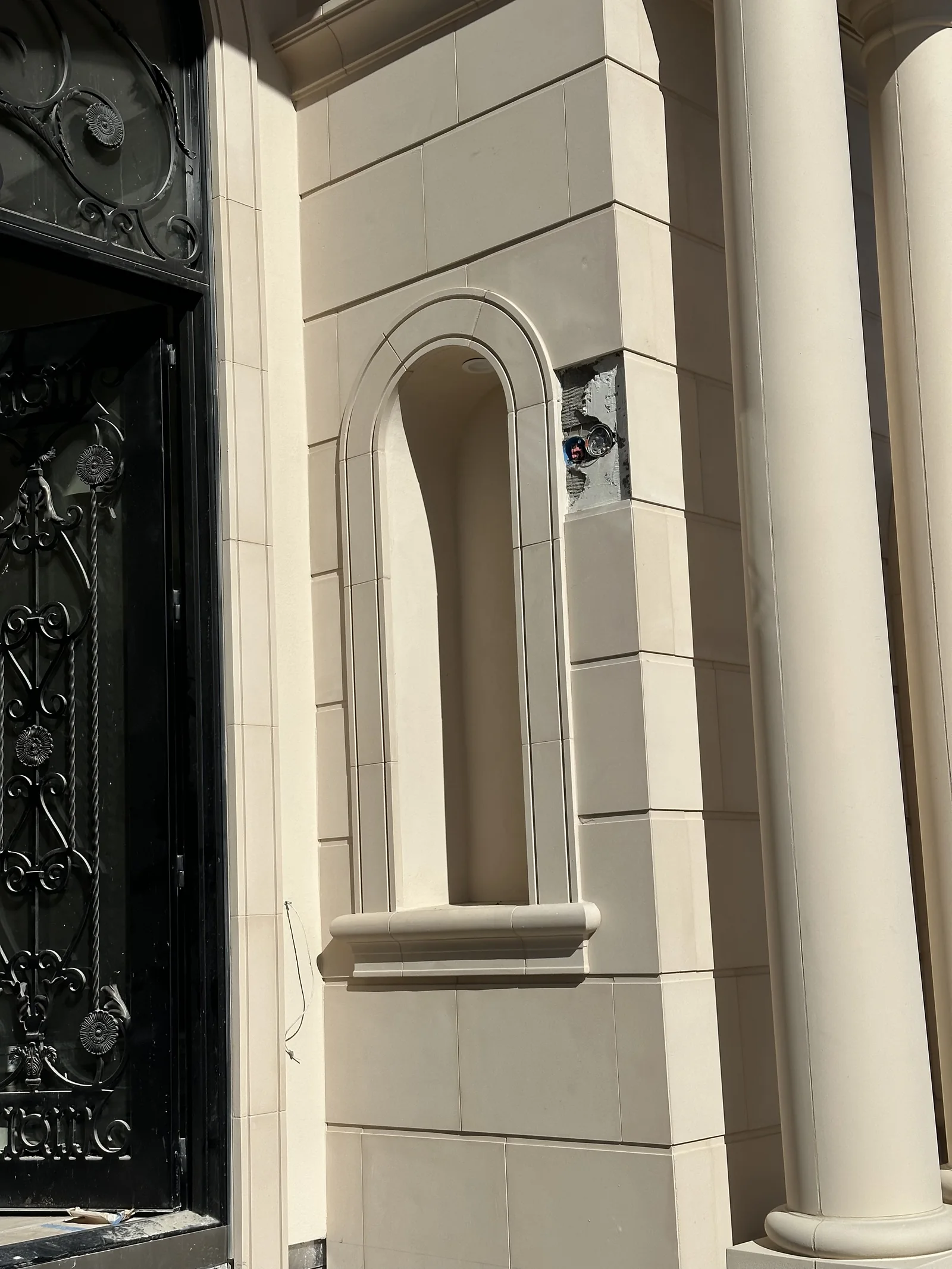

Quoins give building corners scale and visual strength, while cast wall panels create controlled fields between openings and mouldings. Used together, they can establish a complete façade composition.
Explore 24 sized corner quoins across six face treatments, the undimensioned fluted Q10 reference, and seven individual wall panels. Original drawings distinguish recessed fields, raised faces and bottom rebates; custom joints and layouts require project review.
Landmark Stone is based in Olivehurst, California. Share your project location and drawings for a product review, including projects in Sacramento and across Northern California.
Review precast colors and finishes · Request a precast color and finish sample
Why it works
- Six quoin families
- Multiple heights and thicknesses
- Coordinated wall panels
- Repeatable modular layouts
- Custom joints and finishes
- Interior and exterior use
Applications
Quoins & Wall Panels: typical applications.
A starting point for design conversations. Project conditions, engineering, attachment, and local requirements should be reviewed for the final assembly.
01Building corners
02Entry surrounds
03Wall fields
04Rusticated façades
05Garden structures
06Commercial elevations
5 product images
A closer look at Quoins & Wall Panels.
Explore product details and relevant project views. Catalogue drawings and alternative systems are identified in the captions. Select any image to see the complete view at a larger size.
From reference to release
What Landmark Stone needs to resolve the piece.
A catalogue code is a useful starting point, not the whole specification. Send the available project information and the team can help close the gaps before fabrication.
Start a Quoins & Wall Panels review- 01Drawings & dimensions
Plans, elevations, sections, field measurements, or a marked-up sketch.
- 02Reference & design intent
A catalogue model, inspiration image, or profile that establishes the desired character.
- 03Quantity & configuration
Piece counts, linear footage, corners, radii, returns, openings, and repeated conditions.
- 04Color & surface
Target color, texture, adjacent materials, and the light conditions used for sample approval.
- 05Interface & schedule
Substrate, attachment assumptions, delivery sequence, site access, and required milestone dates.
Common planning questions
Useful answers before you request pricing.
How are quoins sized for a building corner?
Review corner dimensions, course heights, alternating piece arrangement, projection and adjoining wall materials. Use the official catalogue as a reference and confirm final dimensions for the building.
Can catalogue references be customized?
Yes. Catalogue families establish proportion and design direction. Final size, length, returns, radius conditions, color, texture, and project interfaces can be reviewed for the selected application.
What should be included with a quote request?
Send the model or design reference, dimensioned drawings when available, quantities, project location, desired finish, and schedule. Early sketches are also welcome when details are still being developed.
How are color and texture approved?
Digital finish studies help narrow the direction, but physical samples should be reviewed beside adjacent materials and in the project’s actual light before final approval.
Are attachment and installation requirements included?
The final assembly depends on piece geometry, substrate, loading, access, and local requirements. These conditions should be coordinated with the project team before release.
Technical review
Planning information in one place.
Open the product catalogue for profile drawings and dimensional references. Confirm final dimensions, tolerances, engineering, finish samples, and installation requirements with the Landmark Stone team.
Downloads
Quoins and panels catalogRelated systems
Continue the material conversation.
Architectural
Baseboards & Wainscoting
Cast baseboards, plinths, and wainscot components that give interiors and protected exterior walls a finished datum.
Architectural
Window Sills
Cast stone sill profiles for windows, openings, veneer transitions, and coordinated façade surrounds.
Plan with Quoins & Wall Panels
Bring the drawing, inspiration, or field condition.
Tell us what you are designing, building, or renovating. We’ll help identify the right material, finish, details, and next steps.
