Cast Stone Corbels & Architectural Brackets
Cast stone brackets and corbels for ledges, balconies, entries, mantels, and expressive transitions.
Browse the designs
16 catalogue references
1 / 16
View in 3D ↓Building the 3D material study…
Live WebGL geometryCB10 · Catalogue-based corbel reconstructionCB10
Back to the designs ↑Drag to orbit · use Front, Isometric or Side to reset the viewDigital smooth-color studyAlpine White · Smooth
This is CB10’s individual catalogue-based corbel reconstruction, not a generic bracket or continuous moulding run. CB18’s centre geometry includes disclosed drawing-derived estimates. This is not fabrication CAD or a structural/load-capacity approval. Confirm attachment, support, dimensions and physical color/finish samples before ordering. See all four precast finishes and 19 colors.
Selected reference
CB10Corbel profiles
Catalogue-based visual study · not fabrication CAD.
Dimensions, drawing & model notes
- Corbel width · inches
- 8 W · catalogue dimension, not an illustrative run length
- Corbel height · inches
- 32 H · catalogue dimension
- Maximum projection · inches
- 22.5 · catalogue dimension
- Printed lower partial dimension · inches
- 6 · lower edge, not maximum projection; small drafting differences follow the trace
- Source
- Section CBL1 · PDF page 1 · original individual corbel outline and width label
- Reconstruction notes
- This individual corbel is reconstructed from its original closed side outline and printed width, height and side-face projection. Original curves and steps are retained; minor undimensioned drafting differences follow the drawing. Attachment, fixings, load capacity, substrate, support and installation are not established by the catalogue illustration. Do not assume a structural load rating. Digital reconstruction, not fabrication CAD; approve physical color and finish samples.
Official catalogue drawing · PDF page 1 · Open full dimensions ↗Historic sheet: use current website contact details. Confirm final dimensions and availability with Landmark Stone.- Suitable conversations
- Entry canopies · Balconies · Fireplace shelves
- Coordinate before release
- Final dimensions, returns, attachment, tolerances, color, and texture.
Project shortlist · 0/3 selected
Save up to three catalogue references to discuss with Landmark Stone.
Catalogue notes & complete model index
Catalogue-based corbel reconstructionsCorbels
16 catalogue / source references · 1 family · four digital color studies
16 individual CB models · 2 original catalogue sheets
Preparing interactive controls. The original catalogue links remain available.
Each corbel uses its own traced side outline and published width, height and side-face projection. CB18 also has a separately reconstructed projecting centre; its maximum projection and side-band widths are drawing-derived estimates, identified below. These are individual corbels, not illustrative continuous runs. The catalogue does not establish a structural load rating.
1 / 16
Architectural precastSixteen catalog forms · Multiple scales and projections · Project-specific support reviewCustom profiles welcome
About this catalogue and its source references
Interactive catalogue
Find a reference. Check the official profile.
Explore all 16 published corbels as individual 3D reconstructions. Compare each with its original drawing, inspect width, height and projection, review CB18’s derived centre detail, and shortlist up to three references for your project.
Material programArchitectural precast
ApplicationsEntry canopies · Balconies
Catalogue / source references shown16 entries
Project optionsSize · finish · returns
Architectural
Cast Stone Corbels & Architectural Brackets: profiles, applications and planning.
Corbels introduce rhythm and depth beneath ledges, shelves, balconies, and architectural projections. Profiles can read as quiet structural brackets or highly sculpted details.
Explore all 16 CB-series corbels as individual catalogue-based reconstructions, with their own width, height, projection and original drawing. CB18’s projecting centre and inset side details include drawing-derived estimates, identified in its model notes. Confirm custom sizes, attachment and any structural requirements with Landmark Stone.
Landmark Stone is based in Olivehurst, California. Share your project location and drawings for a product review, including projects in Sacramento and across Northern California.
Review precast colors and finishes · Request a precast color and finish sample
Why it works
- Sixteen catalog forms
- Multiple scales and projections
- Project-specific support review
- Crisp cast detail
- Custom finish coordination
- Pairs with crowns and mouldings
Applications
Corbels: typical applications.
A starting point for design conversations. Project conditions, engineering, attachment, and local requirements should be reviewed for the final assembly.
01Entry canopies
02Balconies

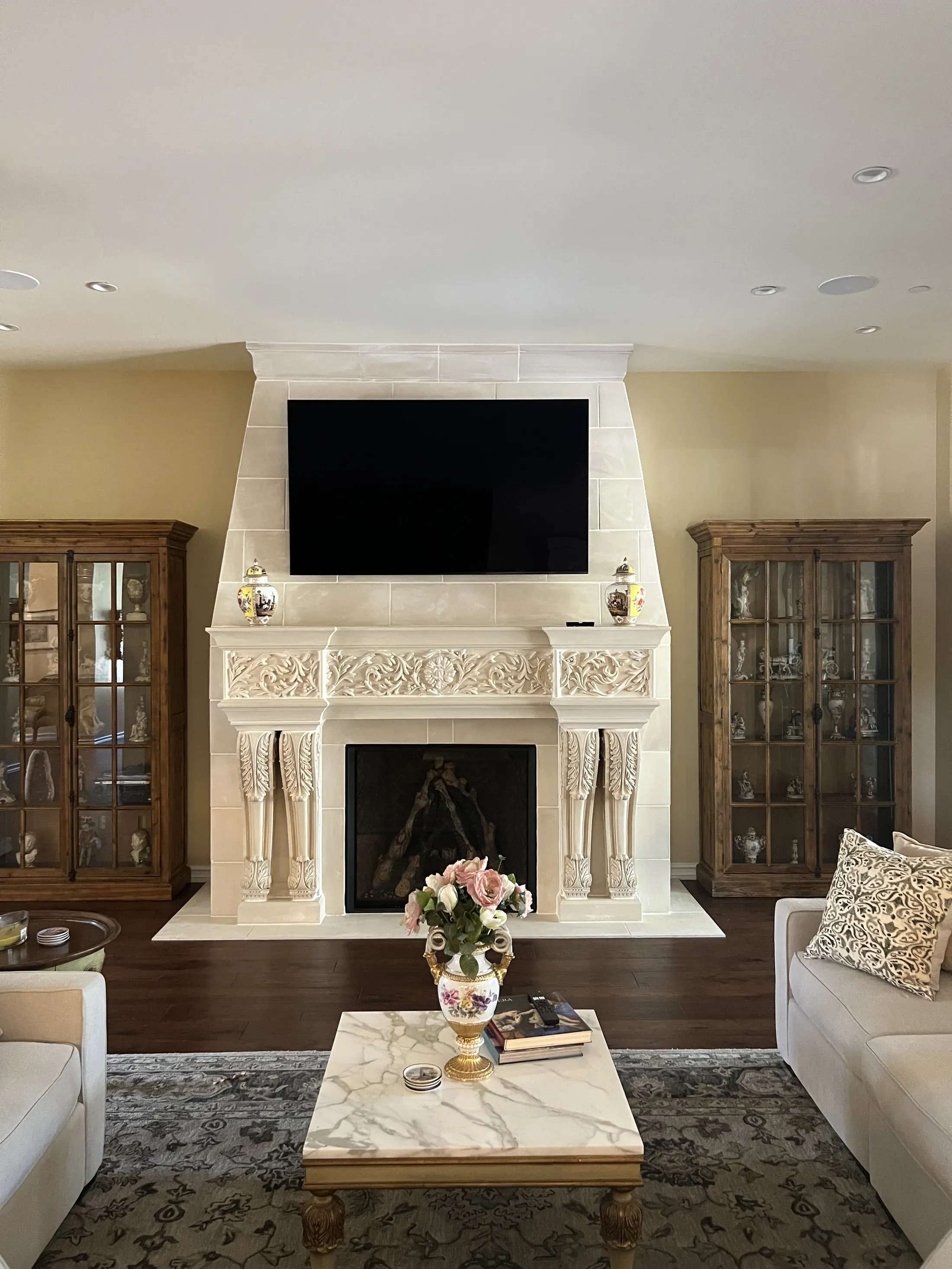

03Fireplace shelves
04Cornice supports
05Kitchen hoods
06Decorative brackets
2 product images
A closer look at Corbels.
Explore product details and relevant project views. Catalogue drawings and alternative systems are identified in the captions. Select any image to see the complete view at a larger size.
From reference to release
What Landmark Stone needs to resolve the piece.
A catalogue code is a useful starting point, not the whole specification. Send the available project information and the team can help close the gaps before fabrication.
Start a Corbels review- 01Drawings & dimensions
Plans, elevations, sections, field measurements, or a marked-up sketch.
- 02Reference & design intent
A catalogue model, inspiration image, or profile that establishes the desired character.
- 03Quantity & configuration
Piece counts, linear footage, corners, radii, returns, openings, and repeated conditions.
- 04Color & surface
Target color, texture, adjacent materials, and the light conditions used for sample approval.
- 05Interface & schedule
Substrate, attachment assumptions, delivery sequence, site access, and required milestone dates.
Common planning questions
Useful answers before you request pricing.
Can decorative corbels be assumed to carry structural loads?
No structural capacity should be assumed from appearance or catalogue imagery. Confirm the intended decorative or supporting role, loads and attachment with the project team.
Can catalogue references be customized?
Yes. Catalogue families establish proportion and design direction. Final size, length, returns, radius conditions, color, texture, and project interfaces can be reviewed for the selected application.
What should be included with a quote request?
Send the model or design reference, dimensioned drawings when available, quantities, project location, desired finish, and schedule. Early sketches are also welcome when details are still being developed.
How are color and texture approved?
Digital finish studies help narrow the direction, but physical samples should be reviewed beside adjacent materials and in the project’s actual light before final approval.
Are attachment and installation requirements included?
The final assembly depends on piece geometry, substrate, loading, access, and local requirements. These conditions should be coordinated with the project team before release.
Technical review
Planning information in one place.
Open the product catalogue for profile drawings and dimensional references. Confirm final dimensions, tolerances, engineering, finish samples, and installation requirements with the Landmark Stone team.
