Architectural
Mouldings & Surrounds
Compare 97 cast stone mouldings for window heads, jambs, surrounds and facade bands. Choose precast window trim by height, projection and the way it returns at an opening.
Stone detail at the human scale
Cast Stone Baseboards & Wainscoting
Cast baseboards, plinths, and wainscot components that give interiors and protected exterior walls a finished datum.
Browse the designs
22 catalogue references
1 / 22
View in 3D ↓Building the 3D material study…
Live WebGL geometryBB10 · Catalogue-traced baseboard sectionBB10
Back to the designs ↑Drag to orbit · use Front, Isometric or Section to reset the viewLengths are shown in the historic drawing, not a current stock or availability promise. Section view zooms in on the cut profile. Viewing selections are not an ordered size.
Digital smooth-color studyAlpine White · Smooth
This is BB10’s own catalogue-traced baseboard section at an illustrated length. It is not a generic shape, a complete wainscot installation or fabrication CAD. Drawing-derived projections and source limitations are identified in the notes. Confirm lengths, corners, attachment and physical color/finish samples before ordering. See all four precast finishes and 19 colors.
Selected reference
BB10Baseboard series
Catalogue-based visual study · not fabrication CAD.
Dimensions, drawing & model notes
- Section height · inches
- 32 H · catalogue dimension
- Lower body depth · inches
- 3 · printed lower-edge dimension, not necessarily the farthest bead
- Maximum projection · inches
- ≈ 3.51 · drawing-derived, confirm before specification
- Printed top flat · inches
- 2 · partial top-edge dimension
- Illustrated straight module · inches
- 36 L · one piece, not a complete multi-piece run. Confirm ordered lengths and end conditions.
- Source
- Section BSB1 · PDF page 1 · individual original section vectors
- Reconstruction notes
- This individual BB section is traced from the original catalogue vectors. Overall height and lower body depth follow their printed dimensions. The moulded face reaches beyond the labelled lower body depth; its maximum projection is drawing-derived and requires confirmation. The viewer shows one straight piece at an illustrated length, not the complete multi-piece run or an approved corner assembly. Confirm current lengths, joints, corners, returns, attachment, substrate and tolerances for your project. Digital reconstruction, not fabrication CAD; approve physical color and finish samples. Small undimensioned curves and ledges follow the drawing; minor drafting differences from a printed top-flat dimension are not fabrication tolerances. This is a tall wall-base profile from the BB catalogue, not an invented separate wainscot panel system. Both 17 1/4-inch and 36-inch illustrated piece lengths are available as viewing options, not current stock promises.

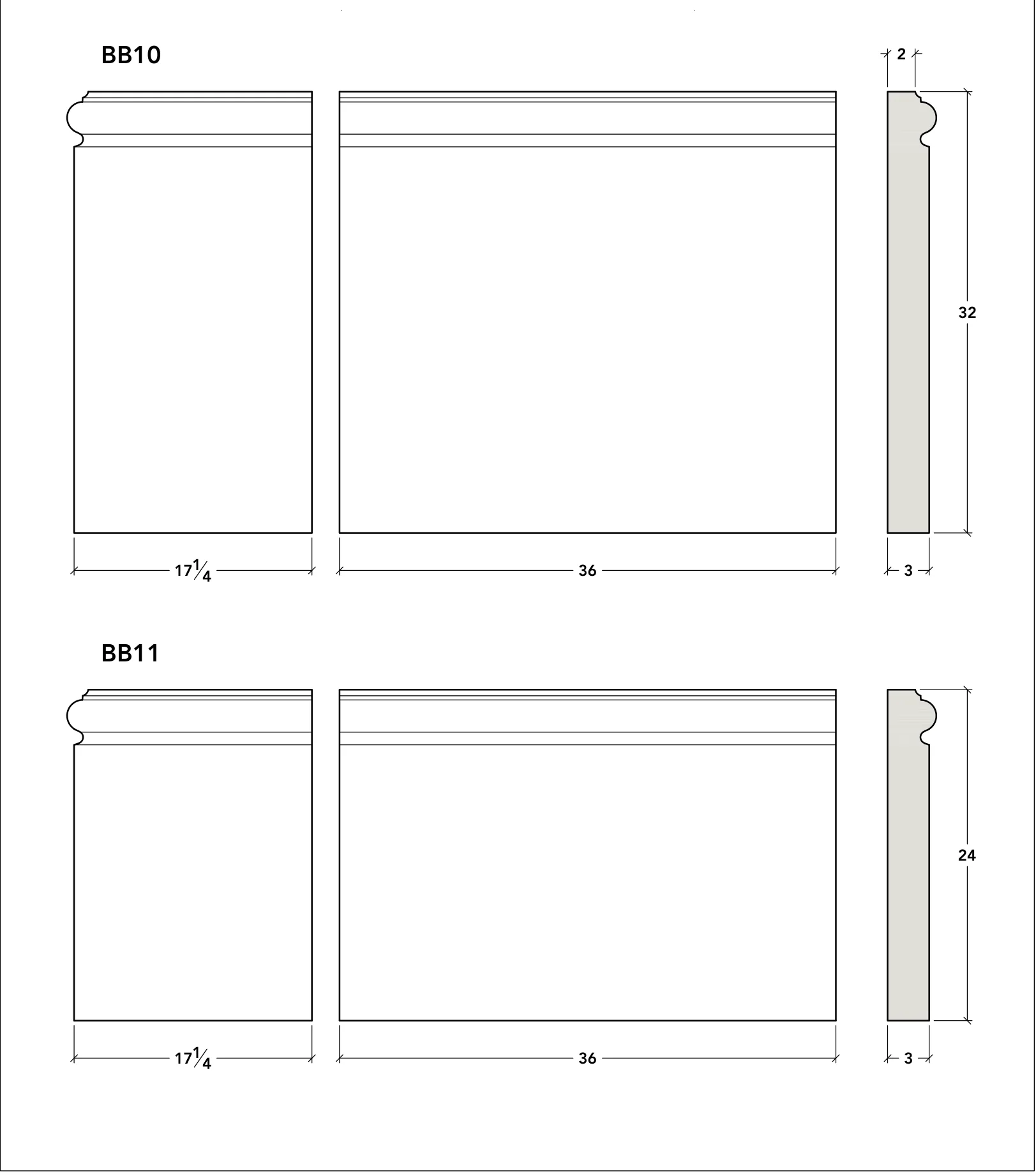

Official catalogue drawing · PDF page 1 · Open full dimensions ↗Historic sheet: use current website contact details. Confirm final dimensions and availability with Landmark Stone.- Suitable conversations
- Entry halls · Feature rooms · Wainscot fields
- Coordinate before release
- Final dimensions, returns, attachment, tolerances, color, and texture.
Project shortlist · 0/3 selected
Save up to three catalogue references to discuss with Landmark Stone.
Catalogue notes & complete model index
Catalogue-traced baseboard sectionsBaseboards & Wainscoting
22 catalogue / source references · 1 family · four digital color studies
22 individual BB sections · 6 original catalogue sheets
Preparing interactive controls. The original catalogue links remain available.
Each model uses its own traced section, height and lower body depth. Tall wall-base profiles are included; the catalogue does not publish a separate wainscot panel system. BB28 is absent. Moulded beads can project beyond the labelled body depth—those maximum projections are drawing-derived and identified below. One straight piece is shown, not a jointed run or an approved corner assembly.
1 / 22
Architectural precast22 catalogue-traced profiles · Tall wall-base profiles · Custom lengths and cornersCustom profiles welcome
About this catalogue and its source references
Interactive catalogue
Find a reference. Check the official profile.
Explore all 22 published BB sections, from small baseboards to tall wall-base profiles, as individual 3D models. Compare their original drawings, inspect dimensions and section details, then shortlist up to three references. Custom wainscot layouts require separate project review.
Material programArchitectural precast
ApplicationsEntry halls · Feature rooms
Catalogue / source references shown22 entries
Project optionsSize · finish · returns
Architectural
Cast Stone Baseboards & Wainscoting: profiles, applications and planning.
Baseboards and wainscot pieces create a durable lower register for halls, rooms, entries, and feature walls. Profiles range from restrained bands to layered classical sections.
Explore all 22 BB-series baseboard sections, including tall 24- and 32-inch wall-base profiles. Coordinate them with mouldings and columns; discuss any custom wainscot layout separately. The catalogue does not specify an independent panel system.
Landmark Stone is based in Olivehurst, California. Share your project location and drawings for a product review, including projects in Sacramento and across Northern California.
Review precast colors and finishes · Request a precast color and finish sample
Why it works
- 22 catalogue-traced profiles
- Tall wall-base profiles
- Custom lengths and corners
- Durable lower-wall finish
- Multiple colors and textures
- Pairs with crowns and mouldings
Applications
Baseboards & Wainscoting: typical applications.
A starting point for design conversations. Project conditions, engineering, attachment, and local requirements should be reviewed for the final assembly.
01Entry halls
02Feature rooms
03Wainscot fields
04Column bases
05Hospitality interiors

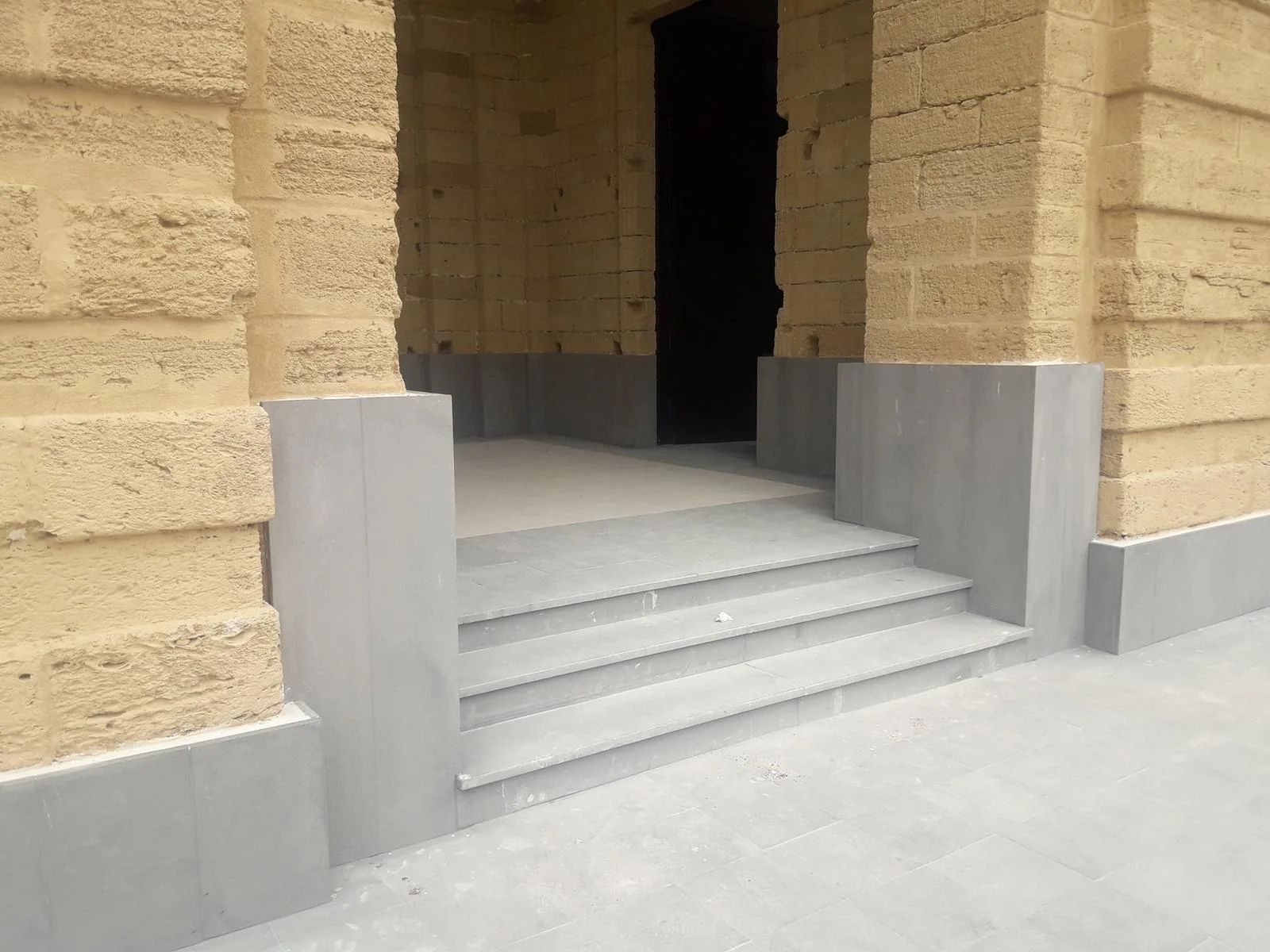

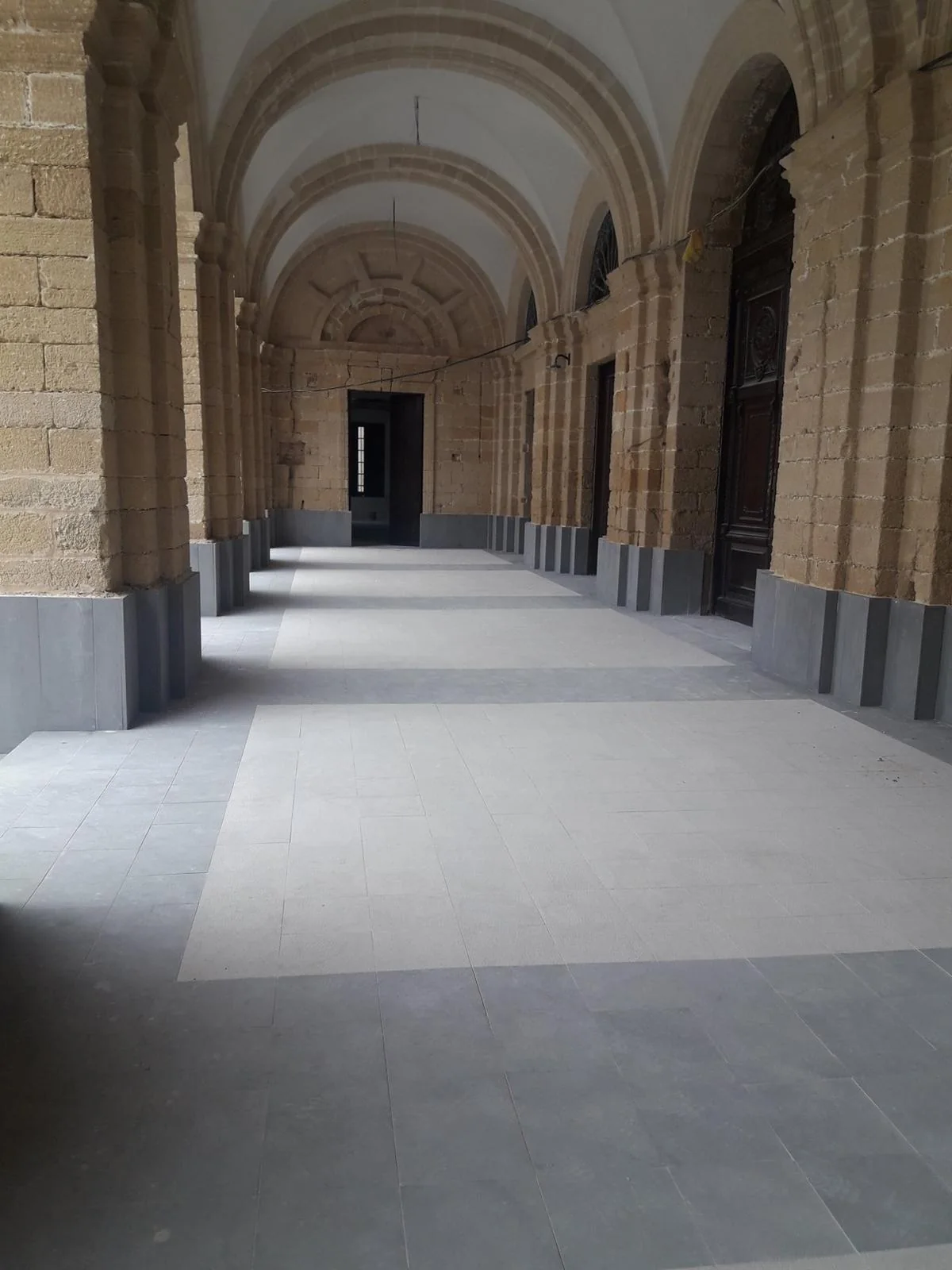

06Protected exterior walls
5 product images
A closer look at Baseboards & Wainscoting.
Explore product details and relevant project views. Catalogue drawings and alternative systems are identified in the captions. Select any image to see the complete view at a larger size.
From reference to release
What Landmark Stone needs to resolve the piece.
A catalogue code is a useful starting point, not the whole specification. Send the available project information and the team can help close the gaps before fabrication.
Start a Baseboards & Wainscoting review- 01Drawings & dimensions
Plans, elevations, sections, field measurements, or a marked-up sketch.
- 02Reference & design intent
A catalogue model, inspiration image, or profile that establishes the desired character.
- 03Quantity & configuration
Piece counts, linear footage, corners, radii, returns, openings, and repeated conditions.
- 04Color & surface
Target color, texture, adjacent materials, and the light conditions used for sample approval.
- 05Interface & schedule
Substrate, attachment assumptions, delivery sequence, site access, and required milestone dates.
Common planning questions
Useful answers before you request pricing.
How do baseboards and wainscoting work together?
Baseboards define the lower edge while wainscoting extends the wall treatment upward. Review heights, joints, corners and transitions to openings as one composition.
Can catalogue references be customized?
Yes. Catalogue families establish proportion and design direction. Final size, length, returns, radius conditions, color, texture, and project interfaces can be reviewed for the selected application.
What should be included with a quote request?
Send the model or design reference, dimensioned drawings when available, quantities, project location, desired finish, and schedule. Early sketches are also welcome when details are still being developed.
How are color and texture approved?
Digital finish studies help narrow the direction, but physical samples should be reviewed beside adjacent materials and in the project’s actual light before final approval.
Are attachment and installation requirements included?
The final assembly depends on piece geometry, substrate, loading, access, and local requirements. These conditions should be coordinated with the project team before release.
Technical review
Planning information in one place.
Open the product catalogue for profile drawings and dimensional references. Confirm final dimensions, tolerances, engineering, finish samples, and installation requirements with the Landmark Stone team.
Downloads
Baseboards catalogRelated systems
Continue the material conversation.
Architectural
Quoins & Wall Panels
Cast quoins and panel modules that articulate corners, wall fields, openings, and traditional façade compositions.
Architectural
Crowns & Cornices
Layered cast stone crown and cornice profiles for rooflines, interiors, entries, and façade transitions.
Plan with Baseboards & Wainscoting
Bring the drawing, inspiration, or field condition.
Tell us what you are designing, building, or renovating. We’ll help identify the right material, finish, details, and next steps.
