A refined edge for water
Precast Concrete Pool Coping
Precast coping profiles that protect the pool structure while creating a comfortable, durable transition to the deck.
Browse the designs
25 catalogue references
1 / 5
View in 3D ↓Building the 3D material study…
Live WebGL geometryC61-30 · Catalogue-traced pool coping sectionC61-30
Back to the designs ↑Drag to orbit · use Front, Isometric or Section to reset the viewIllustrative along-edge run; no stock length is printed. Section view zooms in on the cut profile. Viewing selections are not an ordered size.
Digital smooth-color studyAlpine White · Smooth
This is the selected reference’s original cut section, extruded as one visual module, not a generic slab or a complete installed stair/pool/wall assembly. Adjustable back widths, riser drops and unlabelled details are provisional; source conflicts are identified below. Confirm dimensions, drainage, slip resistance, joints, reinforcement, fixing and physical samples for the project. See all four precast finishes and 19 colors.
Selected reference
C61-30Pool coping · source COP1
Catalogue-based visual study · not fabrication CAD.
Dimensions, drawing & model notes
- Catalogue section reference
- C61-30 · coping · COP1 / PDF page 1
- Section height · inches
- 3 H · Printed height
- Maximum section projection · drawing-derived inches
- ≈ 12.83 · includes the moulded overhang; not necessarily the lower bearing width
- Illustrative adjustable back width · inches
- 12 · Adjustable in the source, except undimensioned CS100. Twelve inches is a viewing assumption, not an order size.
- Reconstruction notes
- The original grey CAD cut face is reconstructed individually; the neighbouring white oblique illustration is not mistaken for the section. The flat rear portion is shown at an illustrative 12-inch back width; the along-edge display run is 24 inches. Neither is a stock-size promise. Nose projection, small grooves and unlabelled transitions are drawing-derived. This is not fabrication CAD, a drainage/slope specification, a stair-code approval or a structural/load rating.
Official catalogue drawing · PDF page 1 · Open full dimensions ↗Historic sheet: use current website contact details. Confirm final dimensions and availability with Landmark Stone.- Suitable conversations
- Swimming pools · Spas · Water features
- Coordinate before release
- Final dimensions, returns, attachment, tolerances, color, and texture.
Project shortlist · 0/3 selected
Save up to three catalogue references to discuss with Landmark Stone.
Catalogue notes & complete model index
Catalogue-traced coping, tread and wall-cap sectionsPool Coping
25 catalogue / source references · 5 families · four digital color studies
25 individual pool coping references · original catalogue sections
Preparing interactive controls. The original catalogue links remain available.
Each coping uses its actual grey cut section, not a generic slab. Three pool-column drawings print CS codes also used for different stair treads; the printed codes and page context are preserved. C70-25 prints a two-inch height despite its suffix.
The rear portion is illustrated at a 12-inch back width. Along-edge runs of 12, 24 or 36 inches are viewing assumptions, not stock-length claims. Unlabelled slopes, fillets, joints and returns remain drawing-derived. These are visual studies, not fabrication CAD, drainage specifications, stair-code or structural approvals.
1 / 25
Landscape precastStraight and curved profiles · Slip-conscious textured finishes · Water and weather resistanceCustom profiles welcome
About this catalogue and its source references
Interactive catalogue
Find a reference. Check the official profile.
Explore all 25 original pool-coping sections individually in 3D. Inspect the actual nosings, rebates and grooves, compare each with its own source drawing, and distinguish printed dimensions from adjustable viewing assumptions.
Profile selection guide
How to choose a precast pool coping profile
Start at the waterline. The height of the exposed edge changes how heavy or light the pool looks; the width behind that edge has to work with your pool wall and deck.
Read the section
Compare the nose in section, then check the available width from the pool wall to the deck. The straight run and rear width in these 3D views are illustrative, not stock sizes.
What to send for a quote
Send the coping reference, pool perimeter, wall and deck section, and any corners, curves or changes in level. A dimensioned plan lets us review straight runs and special pieces separately.
Catalogue dimensions are for selection. Confirm final dimensions and installation details on approved project drawings.
Material programLandscape precast
ApplicationsSwimming pools · Spas
Catalogue / source references shown25 entries
Project optionsSize · finish · returns
Landscape
Precast Concrete Pool Coping: profiles, applications and planning.
Explore all 25 original pool-coping references as individual catalogue-traced 3D sections. Compare rounded and moulded nosings, rebates, grooves, sloped profiles and square-ended forms alongside their own source drawings.
Durable precast construction, project-specific sizing, and textured finishes make the coping practical underfoot while giving the waterline a finished architectural edge.
Landmark Stone is based in Olivehurst, California. Share your project location and drawings for a product review, including projects in Sacramento and across Northern California.
Review precast colors and finishes · Request a precast color and finish sample
Why it works
- Straight and curved profiles
- Slip-conscious textured finishes
- Water and weather resistance
- Custom sizes
- Coordinated pavers
- Residential and commercial applications
Applications
Pool Coping: typical applications.
A starting point for design conversations. Project conditions, engineering, attachment, and local requirements should be reviewed for the final assembly.
01Swimming pools
02Spas
03Water features
04Pool steps
05Commercial aquatic areas
06Integrated pool decks
4 product images

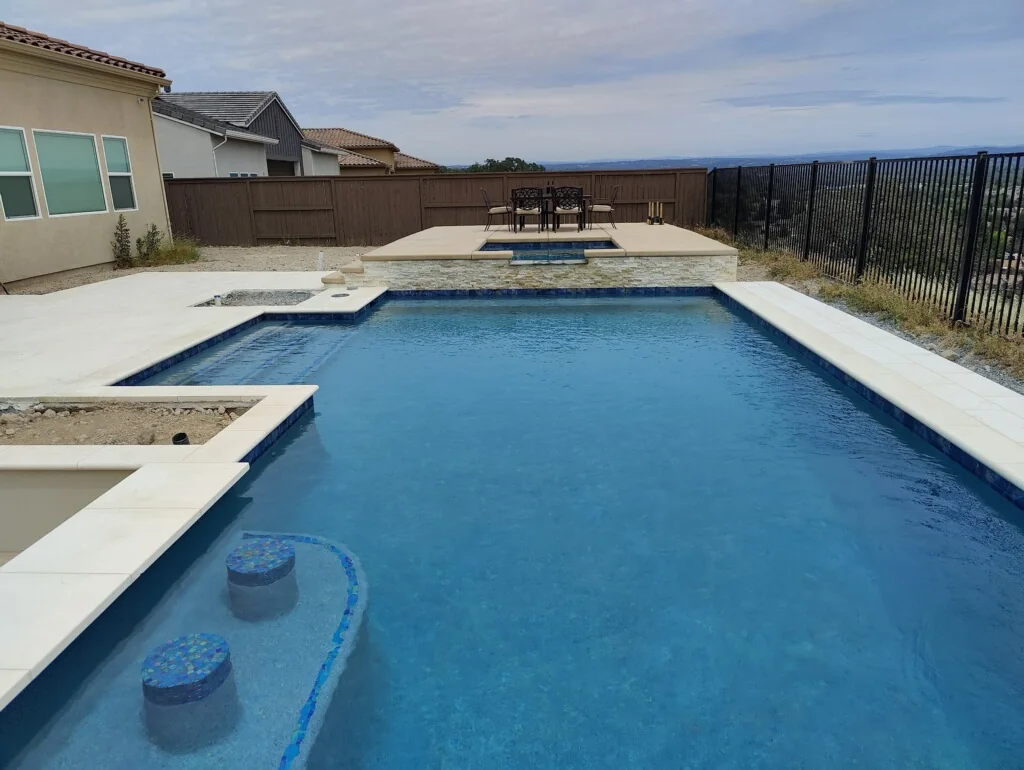

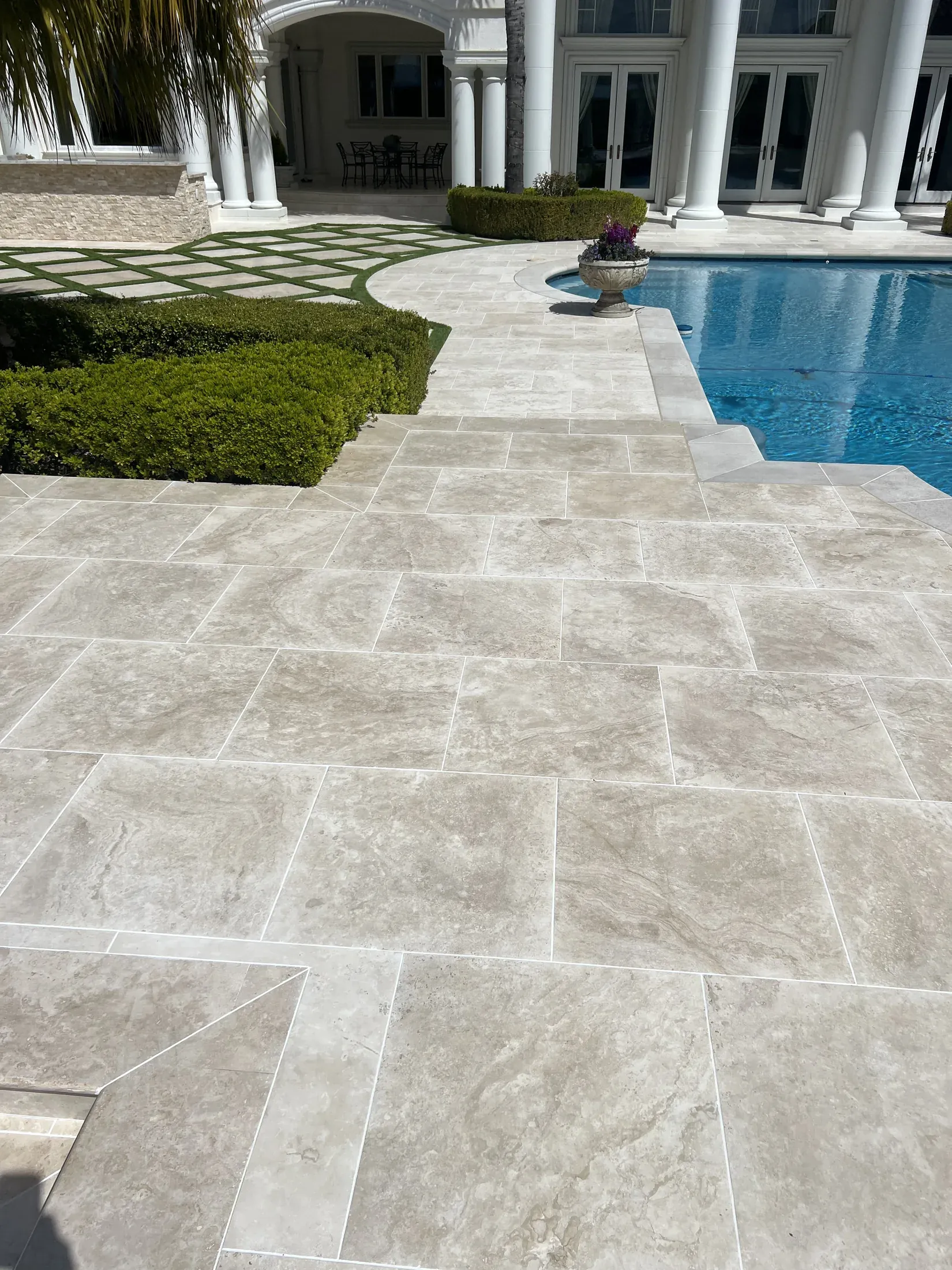

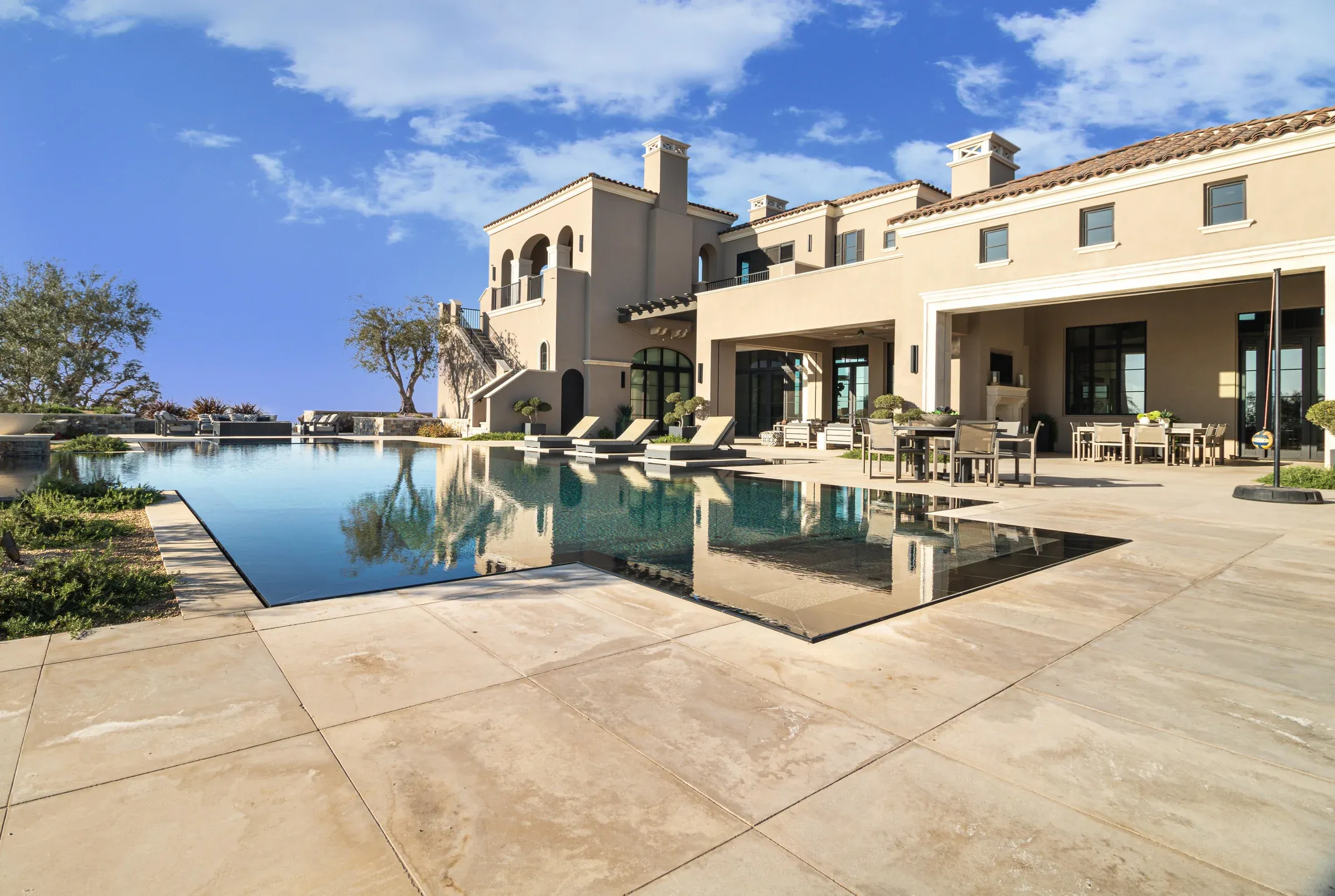

A closer look at Pool Coping.
Explore product details and relevant project views. Catalogue drawings and alternative systems are identified in the captions. Select any image to see the complete view at a larger size.
From reference to release
What Landmark Stone needs to resolve the piece.
A catalogue code is a useful starting point, not the whole specification. Send the available project information and the team can help close the gaps before fabrication.
Start a Pool Coping review- 01Drawings & dimensions
Plans, elevations, sections, field measurements, or a marked-up sketch.
- 02Reference & design intent
A catalogue model, inspiration image, or profile that establishes the desired character.
- 03Quantity & configuration
Piece counts, linear footage, corners, radii, returns, openings, and repeated conditions.
- 04Color & surface
Target color, texture, adjacent materials, and the light conditions used for sample approval.
- 05Interface & schedule
Substrate, attachment assumptions, delivery sequence, site access, and required milestone dates.
Common planning questions
Useful answers before you request pricing.
What is needed to quote custom precast pool coping?
Send the pool perimeter, selected edge profile, piece dimensions and quantities, plus corners, curves and transitions. Include the pool-shell interface and adjacent paving so joints and final installation can be reviewed.
Can catalogue references be customized?
Yes. Catalogue families establish proportion and design direction. Final size, length, returns, radius conditions, color, texture, and project interfaces can be reviewed for the selected application.
What should be included with a quote request?
Send the model or design reference, dimensioned drawings when available, quantities, project location, desired finish, and schedule. Early sketches are also welcome when details are still being developed.
How are color and texture approved?
Digital finish studies help narrow the direction, but physical samples should be reviewed beside adjacent materials and in the project’s actual light before final approval.
Are attachment and installation requirements included?
The final assembly depends on piece geometry, substrate, loading, access, and local requirements. These conditions should be coordinated with the project team before release.
Technical review
Planning information in one place.
Open the product catalogue for profile drawings and dimensional references. Confirm final dimensions, tolerances, engineering, finish samples, and installation requirements with the Landmark Stone team.
Downloads
Coping and stair treadsRelated systems
Continue the material conversation.
Landscape
Wall Caps
Precast wall caps that protect masonry walls, finish planters, and complete landscape architecture.
Landscape

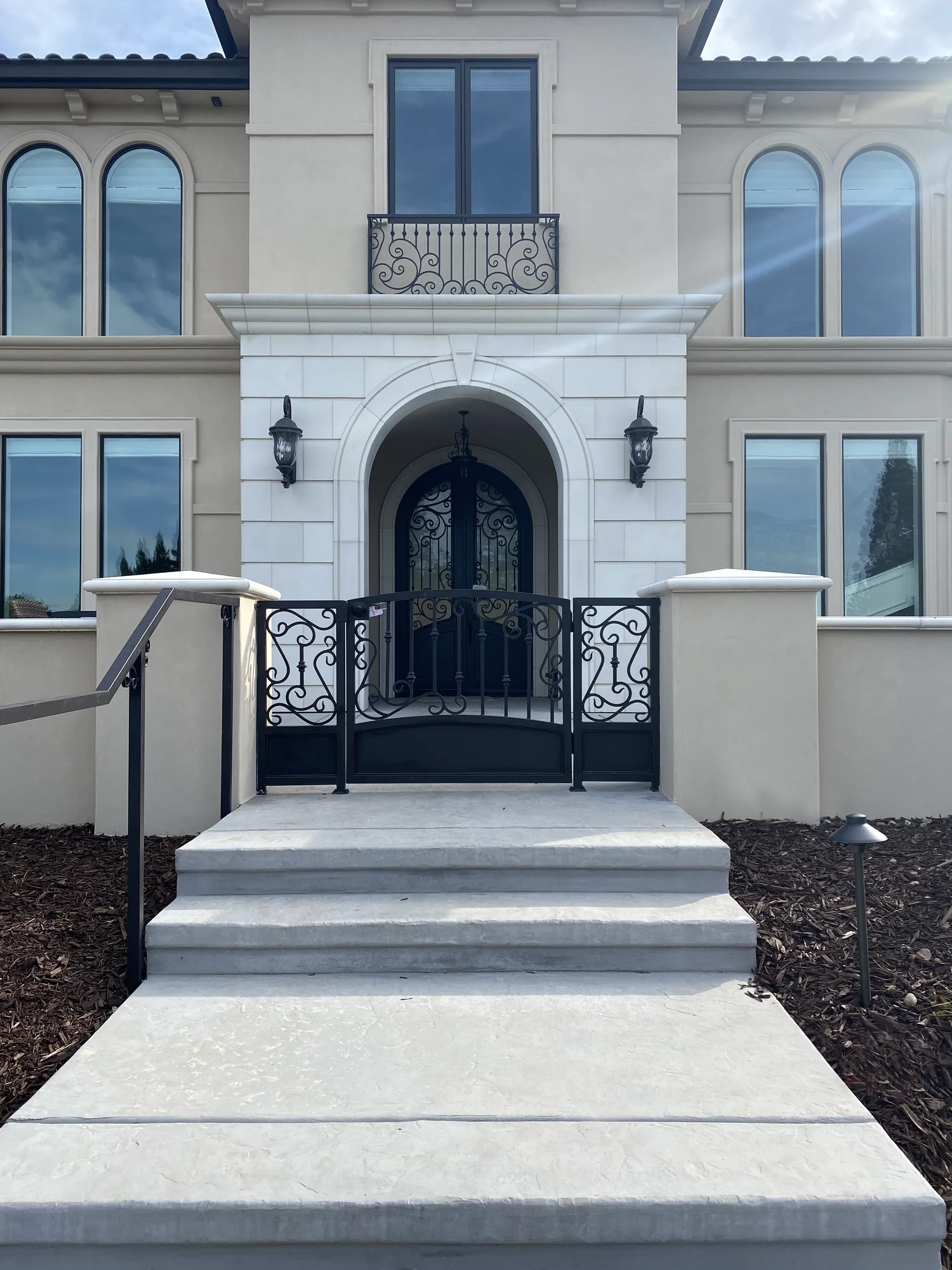

Stair Treads & Risers
Cast stone stair treads, nosings, and integrated riser profiles for entries, terraces, gardens, pools, and exterior stairs.
Plan with Pool Coping
Bring the drawing, inspiration, or field condition.
Tell us what you are designing, building, or renovating. We’ll help identify the right material, finish, details, and next steps.
